Wad Inserting Machine

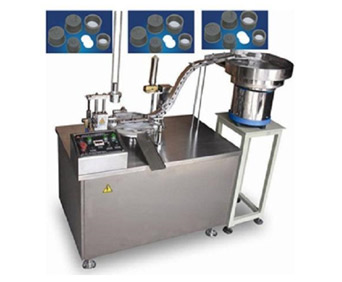

The Automatic Wed inserting Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine.





Operation:



The feed caps in vibrating bowl moving on chute are fed into star wheel, operating on Geneva mechanism. move on third part of induction where one pneumatic actuator put one wad into cap and at last part on induction wad will press by one mechanical operated rod.



Technical Specifications:

Model

SE- WIM – 60

Output/Hour*

1000 to 3000.

Direction of Movement

Left to Right.

Electrical Specification**

Main Motor

2 HP max

Cap Feeding Bowl

20 MPR

Working Height**

700 to 900mm



Salient Features :

  • SS elegantly matt finished body.
  • Single motor synchronizes star wheel & platform turret.
  • Adjustable height of machine.
  • Low noise level, low power consumption.
  • SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
  • Minimum time for change over.
  • Easy operating system.



Utility Requirement :

Electrical supply : 1 Phase + Neutral + Earthing.

Electrical load : 0.75 KW.

Compressed Air : 5Kg Pressure.
