Blister Filling Machine

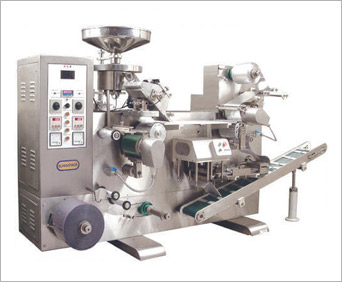

Automatic Blister Pack Machine


Product Details:



Model

SE – BPM

Voltage

440V/50Hz

Power

5.2 Kw

Overall Dimension

L2050xW530xH1350 mm

Weight

600 Kg

Capacity

1800-3200 sheets/hour

Blanking Frequency

15-325 times/min

Max Forming Area and Depth

140x130x15 mm

Our company specializes in providing our prestigious clients with an impeccable array of Automatic Blister Pack Machine. The offered pack machine is appropriate for blister type aluminum-plastic and paper-plastic sealed packing of different capsule, tablet, syringe, small hardware and bubble gum. Also, our pack machine is demanded for their high packing performance efficiency and lesser running cost. Customers can avail this pack machine on diverse specifications according to their demands.


Features :

  • Easy to maintain
  • High functionality
  • Precisely engineered



Performance and Characteristic :

  • Travel scope can be adjusted
  •  Mould is located by locating pin, which makes it easy to change mould. Adopted cool-forming moulds
  •  Speed is shifted by step-less transducer. Adopted the interface of human-machine (touch-screen) and PLC programmable controller
  • Professional material-feeding equipment
  • Adopted photoelectric empty-detecting equipment and waster-eliminating equipment
  • The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life
  • Adopted the equipment of trace pressing, batch number printing and scarp-collecting
  • Manipulator grip to tow wrapper, straight to-and-fro running. Synchronize accurately



Main Technical data :

  • Sheet’s quantity of one blanking (sheets/time): 2
  • Adjustable scope of feed travel (mm): 10-110
  • Capacity of air compressor (m3/min): ≥0.36
  • Wrapper specification (width x Thickness)
  • Composite Aluminum film: 140 x (0.11-0.15)
  • PTP Aluminum foil: 140 x (0.02-0.035)
blis1

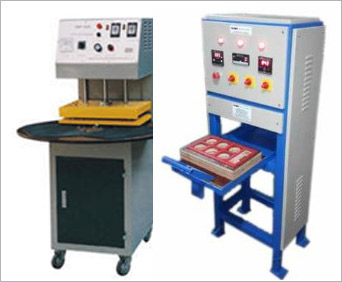

Manual Blister Sealing Machine


Product Details:



Voltage

380 V

Condition

New

Power Consumption

5 kW

Plate Size

400×600 mm

Max Weight

350 Kg



Our Automatic Blister Packing Machines have BSM steel body structure that ensures their high durability as well as exceptional strength. Further, these machines come in the sizes of 20″ x 40″ and 24″ x 40″ and have the power capacity of 1hp and 1.5hp.

Blister sealing machine are used for sealing the blisters to a base board or base foil using compressed air pressure and heat. The coating in the base board or in the foil melts and fuses to the blister material. Different types of coating are available to match the blister. Blister sealing machine are used to seal Tablets, Razor, Shaving blades, Swipes, PVC Soft plastic boxes, toys, PVC book cover, leather cover, notebook cover, promotional items, automotive interiors & parts, inflatable toys and gadgets, and many others. Machine can be manufactured as per customer requirement.

blis2
