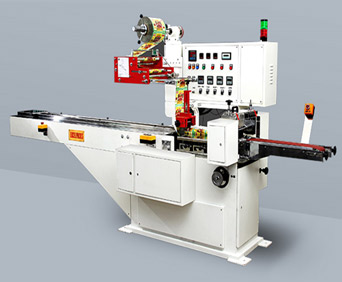

Automatic Flow Wrap Machine

Flow wrap machine is suitable to wrap in pillow shaped pouches. Flow Wrapper for bottle, Soap Flow Wrap Machine, Flow Pack Machine, Horizontal Packaging Machine Flow wrap machine is also known as flow pack machine and flow wrapping is major applicable for biscuit wrapping, chocolate bar wrapping application.

Switches packing and wrapping are majorly done on flow wrap machine. Flow wrap machine is ideal machine to wrap as a biscuit wrapping machine. Biscuit wrapping machine and biscuit packing machine can be pack various numbers of biscuits with desired configuration. Flow wrapping machine is used to pack chocolate bars packing and chocolate wrapping type. Flow Wrap Machine is used as a Noodle packing machine in horizontal flow wrap machine concept.

APPLICATION

Machine is Applicable for packing various bigger size solid regular objects, such as instant noodle, candies, chocolates, biscuits, bread, moon cake, medicine, commodity, hardware, toys, electric items, or loose product loaded by box /tray, etc in Pillow type Laminates.

Fully automatic machine capable of packing various shapes namely cubical, cylindrical and others Can run various types of heat sealable laminates/ films that are printed/ unprinted Having capacity to give variable speed of 25-250 packs per minute. Adjustable pouch length mechanism help in reduction of wastage on packaging material. Built in photo electric system with lining adjustment for the film feed.

TECHNICAL SPECIFICATIONS

Pouch dimension L- 70- 420 mm W= 140 mm (max.) H= 80 mm (max.)

Maximum roll width 400 mm

Production rate 25- 250 pack per minute (depending on the size of the product.)

Electric power consumption 4 kw

Machine dimension L= 146 inches W= 38 inches H= 64 inches

Machine weight 1000 kg (approx.)

We are a leading manufacturers and suppliers for an unmatched range of Automatic Flow Wrap Machines. These products are made using quality raw material and technologically advanced machinery. Besides, these are used for preparing the promotional packaging wrappers for numerous eatable items such as biscuits, ice-creams, comb and many more.

STANDARD FEATURES

The machine is controlled by PLC with LCD touch screen.

High sensitive electrical-optical tracing system can be set at your request.

With special design bag former, Easily adjust packing size.

Safety protect function.

Double frequency inverter controls the speed and bag length.

OPTIONAL PARTS

Solid ink date code printer.

Sealing jaw with hole punching device.

TECHNICAL DATA

Bag Size L(10-350) x W(10-140) x H (5-55) mm

Capacity (Bags/Min.) 40-200

Total Power (kw) 3.0

Film Width (mm) Max. 430

Machine Weight (kg) 900

Dimension (L*W*H) (mm) 4300x1005x1750
