Tube Filling Machine

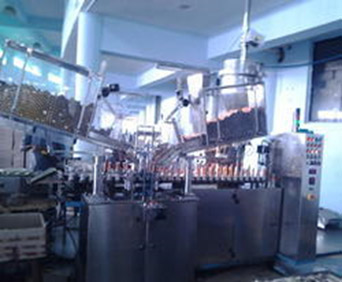

Linear Automatic Tube Filling Machine
Product Details :
|
Model |
SE – ATFM – 60 |
|
Material |
Stainless Steel |
|
Filling Accuracy |
+/ – 0.1% |
|
Capable to Fills |
5 grm. To 250 grm |
|
Filling Speed |
40 / 80 tubes per min |
|
Tube Holder |
24 Nos. SS-304 / Aluminium |
|
Tube Size |
10 to 50 mm dia. |
|
Tube Length |
40 to 220 mm |
|
Machine Weight |
450 Kgs. |
|
Dimension |
L1460xW930xH2450 mm |
|
Voltage |
230 V / 440 V |
Automatic Tube Sealing Machine:-
We hold the expertise in manufacturing an extensive array of Automatic Tube Filling Machine. Manufactured utilizing optimum quality raw material and sophisticated technology, the offered Filling Machine are known for their various remarkable features. In order to meet varied requirements of clients, we provide this machine in various dimensions and sizes. Furthermore, our offered range undergoes varied test on well-defined parameters to ensure its conformity with the international standards.
Salient Features :
- Ideal for the filling, sealing and coding applications in aluminium, LD, lami tubes
- Suitable for filling 2 gm to 200 gm of ointment, gums and lotions
- Available in rotary/linear models
- Available in single or double heads
- Auto drip-free filling for high efficiency
- Imported sealing and crimping unit
- Online coding attachment
- Maximum output: 30/40/60/80/100 tubes per min
Other Details:
- The empty tubes, which are first loaded in the cassette, are feed into the tube holders by a tilter. Next the tubes are orientation station for positioning the “I” mark subsequently.
- The machine operates on auto function with the operator feeding the tubes automatic at the tubes in feeder holding station
- The tube goes to filling station
- After filling the tube travels to the heating station where hot air is blown onto the inside end of the tube by a nozzle
- In the meantime, after each filling session a control on tailing is achieved by a pneumatic cut-off system, along with filters, that cleans the nozzle of the excess sample
- Next, when the tube is lifted for heating, a cooling ring canters the tube so that heating is uniform around the tube, as also to ensure that the outside portion of the tube is not heated
- While heating, the hot air is simultaneously sucked out of the tube so that the product is not affected
- The tube then goes to the sealing & coding station where the tube is pressed & sealed and then coded with metal stereos (female)
- It then travels to the trimming station where the irregular shape at the tube end is trimmed by a set of blades
- It is then ejected at the next collection station

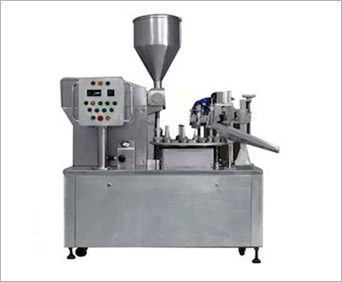

Semi Automatic Tube Filling Machine
Product Details :
|
Model |
SE – STFM – 40 |
|
Material |
Stainless Steel |
|
Filling Accuracy |
+/ – 0.1% |
|
Capable to Fills |
5 grm. To 250 grm |
|
Filling Speed |
30 / 40 tubes per min |
|
Tube Holder |
12 Nos. SS-304 / Aluminium |
|
Tube Size |
10 to 50 mm dia. |
|
Tube Length |
40 to 220 mm |
|
Machine Weight |
450 Kgs. |
|
Dimension |
L1460xW930xH2450 mm |
|
Voltage |
230 V / 440 V |
With the support of our adept and seasoned professionals, we are engaged in offering Semi -Automatic Tube Filling Machine. Our offered tube filling machine is able to fulfill the requirement of the pharmaceutical / Cosmetic industry by filling the ointment inside the tube. This tube filling machine is extensively used for filling liquid medicines and cosmetic in tubes and is highly demanded in industry. We inspect this tube filling machine against various parameters to guarantee the premium quality.
Features :
- Ideal for the filling, sealing and online coding applications in almunimium, LD, lami tubes.
- Suitable for filling 2gm to 200 gm of ointment, gums and lotions
- Available in rotary/linear models
- Available in single or double heads
- Auto drip-free filling for high efficiency
- Electronic Digital filled Tube Production Counter
- Overload Clutch for Centering and Micro Switch Cut-Off System
Salient Features :
- No Tube No Fill device (material will not discharge from hopper, when there is no tube on filling station)
- Machine is provided with S. S. Hopper with electrical jacketed, with thermostatic control to keep the material hot, while filling for a smooth flow of material while filling in the tubes.
- Machine is provided with stirring device, so that no active ingredients in the material cannot stick to the inner wall of hopper, which contains your material
- Ours is the only from India, which is suitable for filling, sealing coding of Aluminum tube as well as plastic LAMI tubes by changing over the sealing device
- Machine is supplied with all contact parts made of SS 316 material
Other Details:
- The proposed GMP MODEL, SE – STFM – 40 Compact rotary Medium Speed Semi Automatic Aluminum tubes filling & Sealing machine
- Filling System -Positive Suction & Displacement. Attached Pneumatic Blow Tail Cut-off with Control System
- 12 Nos.Tube holding Cup SS-304. And SS Spring Loaded Nylon Holders One Tube Size
- Indexing System Geneva Mechanism
- Syringe Pump Single Head Type Insert for Filling (5 Gms. to 30 Gms.) (30 Gms. to 100 Gms.) (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order.
- Indexing System Geneva Mechanism
- Temperature Controller With 3KW SS Tubular Heater
- Feeding the empty tubes manually, and filling, sealing, Coding and Tube Ejector automatically
- Lami / plastic Tube heating device Activate on Leicester Model Type 3000 Hot Air Tool 8D1 Swiss Make one set
- With Hot air Tool adopter Jacketed SS-304, one set and tube-heating adopter cooling ring centers the tube so That heating is uniform around the tube
- Blower: 0.5 HP (MINI VAC Make) one set
- Lami / plastic Tube Sealing Device Activate on Pneumatics
- In sealing & coding wherein the tube is pressed & sealed and then coded with metal stereos coding letter punch (female 0 to 9, one set)
- Machine body Construction Mild Steel 50mm Sq
- Box type and Machine bash plate 19mm heavy duty fabricated, with Epoxy Powder Coated And all Safety Cover 18 gauge SS 304
