Labeling Machine

Product Details:

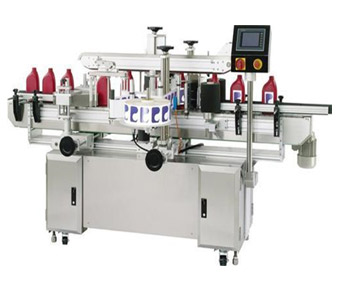

Automatic Self Adhesive Two Side Flat Bottle Labelling Machine

Model	SE – DASLM -100
Output Hour	3600 to 9000 Nos
Direction of Movement	Left to Right
Height of Conveyor	860 mm to 910 mm
Machine Dimensions	2135 mm (L) x 1750 mm (W) x 1450 mm (H)
Net Weight	450 Kgs.
Electrical Specification	0.25 HP, 230 Volts, 50 Hz/ 90Watt, Gear Motor/ 6V DC / 40 Kgs. x 2 nos.

The Automatic Self Adhesive Two Side Flat Bottle Labelling Machine is one of the most users friendly. The machine is used for two sides labeling on a flat surface of different size of a flat container. It is capable of labeling up to 100 containers per minutes depending on products and label size. The automatic model is equipped with belt spacing device resulting in a simple to “No change parts required”.

Input Specification:

Label Specification	Length**	30 mm to 180 mm
	Height**	16 mm to 100 mm
	Space between two label	Min. 3 mm in anti clockwise
	Roll Diameter	Max. 300 mm X ID 75 mm
Container Size**	Flat / Square	15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm X 240 mm (Height option for other bottle height available)

Utility Requirement :

Electrical Supply	Three Phase + Neutral + Earthing
Electrical Load	2 kW
Air Pressure	Minimum: 6 bar pressure 0.5 CFM for printing device.

Salient Features :

High Production Speeds.
Suitable for any type of Flat Container.
Container hold from the top for perfect & accurate labelling.
Stainless steel 304 construction.
GMP design.
Accurate label placement.
Full Security Package including the counter.
Secondary pressure unit.
PLC with Soft Keypad System.
Product data storage Facility.
No change parts requirements.
Very less downtime for change over.
Suitable for Glass, Plastic, Pet, Tin, Corrugated containers

Automatic High-Speed Glue Labeling Machine

Product Details:

Model	SE – AGLM -100
Output Hour	3600 to 9000 bottles
Direction of Movement	Left to Right
Main Motor	0.5 HP, 0.75 HP, 1 HP / 220 Volts / 50 Hz
Cap Feeding Bowl	300-Watt Magnetic Coil
Height of Conveyor	860 mm to 910 mm
Machine Dimensions	3010 mm (L) x 1016 mm (W) x 1170 mm (H)
Case Dimensions	3250 mm (L) x 1250 mm (W) x 1200 mm (H)
Net Weight	550 Kgs.
Electrical Supply	Three Phase + Neutral + Earthing
Electrical Load	1 kW

Input Specification :

Label Specification	Length	20 mm to 140 mm
	Height	16 to 90 mm
	Thickness	65 to 70 GSM (The Direction of Gains of the Label must always be parallel to the container axis. The paper should be flexible)
Container Size	Round Shape	Ø 16 mm to Ø 100 mm***
		Respectively Height 40 mm to 240 mm***
		(Height option for other bottle height available)
	Flat / Square	(A)15 mm to 100 mm (Length) (B) 10 mm to 50 mm (Width) (C) 58 mm x 240 mm (height) (Height option for other bottle height available)



Wet Glue	Glass / Plastic / PET etc.	As per recommended in user manual
* Depends on bottle size, shape and Neck dia of container. We can supply as per customer requirements. * With help of change parts.

Salient Features :

High Production Speeds.
Suitable for any type of Flat Container.
Container hold from the top for perfect & accurate labelling.
Stainless steel 304 construction.
GMP design.
Accurate label placement.
Full Security Package including the counter.
Secondary pressure unit.
PLC with Soft Keypad System.
Product data storage Facility.
No change parts requirements.
Very less downtime for change over.
Suitable for Glass, Plastic, Pet, Tin, Corrugated containers

Automatic Self Adhesive Sticker Labeling Machine

Product Details:

Model	SE – ASLM -100
Direction Of Movement	Left to Right
Automatic Grade	Automatic
Output Hour	3600 to 9000 Nos
Height of Conveyor	860 mm to 910 mm
Machine Dimensions	1835 mm (L) x 600 mm (W) x 1450 mm (H)
Net Weight	350 Kgs.
Electrical Supply	Three Phase + Neutral + Earthing
Electrical Load	0.75 kW
Air Pressure	Min 6 bar pressure 2 CFM for printing device
Fill Size	5 ml to 1000 ml
Conveyor Motor	0.50 HP / 415 Volts / 50 Hz
Pressing Device Motor	0.25 HP / 220 Volts / 50 Hz
Sticker Roll Stepper Motor	6 Volts DC

Description:

The Automatic Self-Adhesive Sticker Labeling Machine SE – ASLM -100 is one of the most user-friendly. The machine is used for full/partial wrap around labelling on different size of round container. It is capable of labelling up to 100 containers per minutes depending on products and label size. The automatic model is equipped with a self-adhesive roller spacing device resulting in a simple to “No change parts required”.

Operation :

The round containers positioned & accurate spacing between two containers by the roller spacing device for wrap-around operation at the operation at the labelling point, an electronic product sensor senses container & release self-adhesive label roll. If a machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on the label during label is stationary means time between a sensing of two label. The sensed round container moves on conveyor sticker label at labelling point wrapped around to container. Then the labelled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of a label.

Salient Features:

High Production Speeds.
Stainless steel 304 construction.
GMP design.
Accurate label placement.
Full Security Package including the counter.
Product data storage facility.
No change parts requirements.
Very less down time for change over.
Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.
Online printing device.
Online inspection of batch no & printing.
Acrylic cabinet.
Servomotor instead of a stepper motor.
PLC with touch screen system.

Input Specification:

Label Specification	Length	30 mm to 180 mm
	Height	16 mm to 100 mm
	Roll Diameter	Max. 300 mm x ID 75 mm
	Space between two label	Min. 3 mm in anti clock wise
Container Size	Round Shape	Ø 22 mm to Ø 100 mm Respectively Height 40 mm to 240 mm (Height option for other bottle height available)
* Depends on bottle size, shape and Neck dia of container. We can supply as per customer requirements. * With help of change parts.
